Evaporative type cooling tower with high quality

FOB Reference Price:Get Latest Price
$1,000.00 - $3,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
CHANGXUE
Report Suspicious Activity
Overview
Quick Details
Cooling Type:
Cross Flow
Power(W):
custom
Dimension(L*W*H):
custom
Weight:
difference
Warranty:
one year
Condition:
New
Material:
Metal
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
CHANGXUE REFRIGERANT
Voltage:
difference
Certification:
ISO9001,2008;BV
keyword:
cooling tower fill
After-sales Service Provided:
No overseas service provided
Supply Ability
Supply Ability:
8 Set/Sets per Day
Packaging & Delivery
Packaging Details
will be packed by PVC film+XPS reinforcement or Wooden packaging+XPS reinforcement.
Port
SHANGHAI
Product Description

The CHANGXUE cold room includes chiller room, frozen room, quick-freezing room,  quick-freezing tunnel and so on. These products are not only widely used in supermarkets, medicine, hotels, canteens, aquatic products, meat, vegetables, fruits and other industries, but also suitable for electronic, mechanical and chemical refrigeration testing industry.

Specification:

Taking polyurethane with excellent insulation performance as core material and colored steel sheet,304 stainless steel or aluminum sheet as external material, the sandwich-type board can reduce the heat conduction due to difference between internal and external temperature to achieve maximum efficiency of freezing and refrigeration system.

Thickness
50mm,75mm,100mm,120mm,150mm,180mm,200mm
Width
Standard width is 960mm or customized
Length
Customized
Density
38-42kg/m³
Surface Material
304 stainless steel, painted color steel and embossed aluminum sheet(0.3mm-1.0mm)
Connection
Connected by cam locks
Certification
ISO9001:2015,BV and SGS
Fireproof Rate
B2

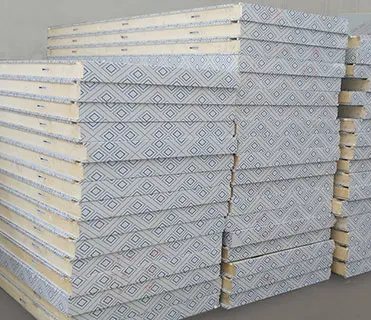

PU panel(PPGI)
PPGI (Prepainted galvanized steel sheet)covered in both sides with small waves
PU Density=40±2kg/m³
PU Thickness=50mm/75mm/100mm/120mm/
                              150mm/180mm/200mm
Thickness of PPGI=0.3mm/0.4mm/0.5mm

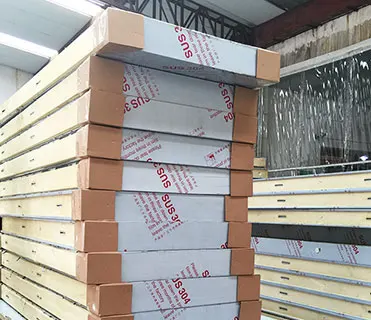

PU panel(Stainless Steel)
Stainless steel covered in both sides with small waves
PU Density=40±2kg/m³
PU Thickness=50mm/75mm/100mm/120mm/
                              150mm/180mm/200mm
Thickness of Stainless Steel=0.5mm/0.6mm/0.7mm/
0.8mm

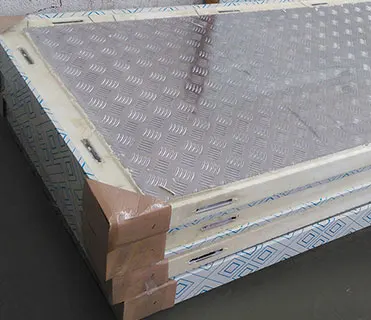

PU panel(Embossed Aluminum)
Embossed Aluminum covered in both sides with small waves
PU Density=40±2kg/m³
PU Thickness=50mm/75mm/100mm/120mm/150mm/
                               180mm/200mm
Thickness of Embossed Aluminum =0.5mm/0.6mm/
0.7mm/0.8mm
PU panel(PPGI+ Stainless steel)
PPGI covered in one side with small waves and stainless steel covered in the other side with small waves
PU Density=40±2kg/m³
PU Thickness=50mm/75mm/100mm/120mm/
                              150mm/180mm/200mm
Thickness of PPGI=0.3mm/0.4mm/0.5mm
Thickness of Stainless Steel=0.5mm/0.6mm/0.7mm/
0.8mm
PU panel(PPGI+Embossed Aluminum)
PPGI covered in one side with small waves and embossed aluminum covered in the other side with small waves
PU Density=40±2kg/m³
PU Thickness=50mm/75mm/100mm/120mm/
                              150mm/180mm/200mm
Thickness of PPGI=0.3mm/0.4mm/0.5mm
Thickness of Embossed Aluminum =0.5mm/0.6mm/
0.7mm/0.8mm
PU panel(Stainless steel+Embossed Aluminum)
Stainless Steel covered in one side with small waves and embossed aluminum covered in the other side with small waves
PU Density=40±2kg/m³
PU Thickness=50mm/75mm/100mm/120mm/
                              150mm/180mm/200mm
Thickness of Stainless Steel=0.5mm/0.6mm/0.7mm/
0.8mm
Thickness of Embossed Aluminum =0.5mm/0.6mm/
0.7mm/0.8mm
Thickness of cold storage panel
Application temperature
50mm
Temperature 5°C or above
75mm
Temperature -5°C or above
100mm
Temperature -15°C or above
120mm
Temperature -25°C or above
150mm
Temperature -35°C or above
180mm
Temperature -40°C or above
200mm
Temperature -45°C or above
Product Category
About Us

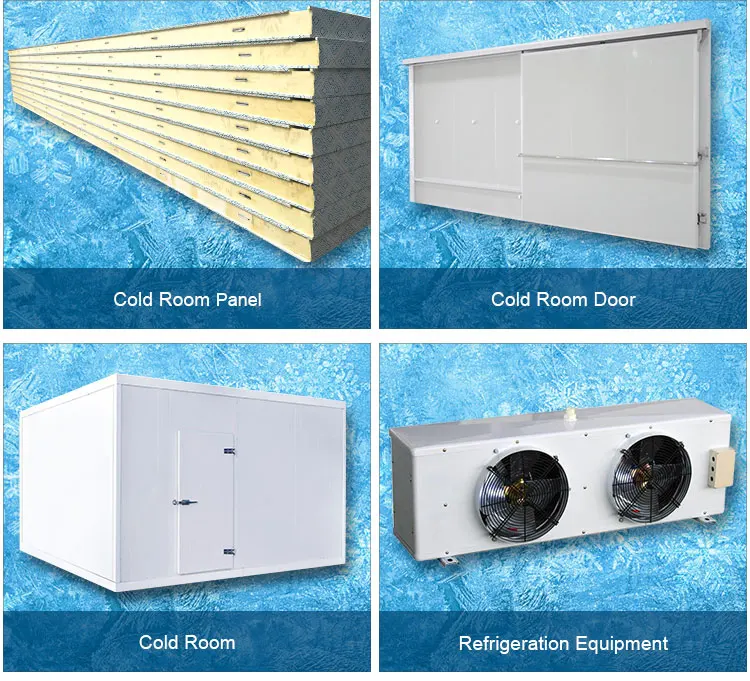

The cold room panel has different thickness, from 50 millimeters to 200 milimeters, using polyurethane materials for the inner and the surface panel can use prepainted galvanized steel sheet, stainless steel plate or embossed aluminum sheet. The cold room door can be manual or electronic, single door or double open door, and other types. Also, the level of our panel and door's flame retardant can reach B2 according to customers' needs.

As a professional enterprise specializing in manufacture and marketing of refrigeration equipment, Changzhou Changxue has grown up as a success one in China in the market of refrigeration. We have set up a foreign trade department for servicing our clients from other countries;
We can certainly offer you:
1. Best quality & best price.
2. Satisfactory service.
3. Long-term cooperate relationship.
4. Door-to-door service under a paid partnership.
And we also accept:
1. Visit to our factory.
2. Airport picking-up.
3. Customized requirement.
4. Inspection from your side any time during the production process and before loading.

Packing & Delivery

1.Conventional packing:carton
2.Delivery time:15 Days after confirm
3.From confirming the order to shipment,our after-sale service will update the photos to you.

FAQ

1: What is the thickness of polyurethane panel?

The thickness of polyurethane panel is 50mm, 75mm, 100mm, 120mm, 150mm, 180mm, 200mm.

2: If you want to customize the small freezer, the details about the small freezer as follows you should tell me.

(1) What is the size of the small freezer?

(2) What is the small freezer used for?

(3) What is the required temperature of the small freezer?

(4)What is the voltage in your country?
