75mm polyurehthane wall panel with 0.3mm galvanized steel

FOB Reference Price:Get Latest Price
$16.00 - $19.00 / Square Meters | 1 Square Meter/Square Meters (Min. Order)
Type:
Polyurethane Sandwich Panels
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
changxue
Model Number:
other
Panel Material:
Metal
Product name:
75mm polyurehthane wall panel with 0.3mm galvanized steel
Keyword:
polyurethane panel
Thickness:
75mm
Length:
1-11.8m
Width:
960mm
Fireproof:
B2 Grade
Surface material:
Galvanized steel
Density:
40-42kg/m3
Color:
RAL Color
Raw material:
Polyurethane
Supply Ability
Supply Ability:
6500 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
75mm polyurehthane wall panel with 0.3mm galvanized steel will be packed by PVC film+XPS reinforcement or Wooden packaging+XPS reinforcement.
Port
polyurethane faux stone wall panel will be shipped from Shanghai port or Guangzhou port.
Product Description

1.1 Polyurethane panel structure


Taking polyurethane with excellent insulation performance as core material and colored steel sheet,304 stainless steel or aluminum sheet as external material, the sandwich-type board can reduce the heat conduction due to difference between internal and external temperature to achieve maximum efficiency of freezing and refrigeration system

Cold room is widely used in food industry, medical industry, and other related industry.
In food industry, cold room is usually used in food process factory, slaughterhouse, fruit and vegetable warehouse, supermarket, hotel, restaurant, etc.
In medical industry, cold room is usually used in hospital, pharmaceutical factory, blood center, gene center, etc.
Other related industry, such as chemical factory, laboratory, logistics center also use cold room.

Product Parameter
Thickness
50mm,75mm,100mm,120mm,150mm,180mm,200mm
Width
Standard width is 960mm or customized
Length
Customized
Density
38-42kg/m³
Surface material
304 stainless steel, painted color steel and embossed aluminum sheet(0.3mm-1.0mm)
Connection
Connected by cam locks
Fireproof Rate
B2
Certification
ISO9001:2015,BV and SGS.

Different thick PU panel will be applicable to different temperature.

PU panel thickness
Application temperature
50mm
Temperature 5°C or above
75mm
Temperature -5°C or above
100mm
Temperature -15°C or above
120mm
Temperature -25°C or above
150mm
Temperature -35°C or above
180mm
Temperature -40°C or above
200mm
Temperature -45°C or above

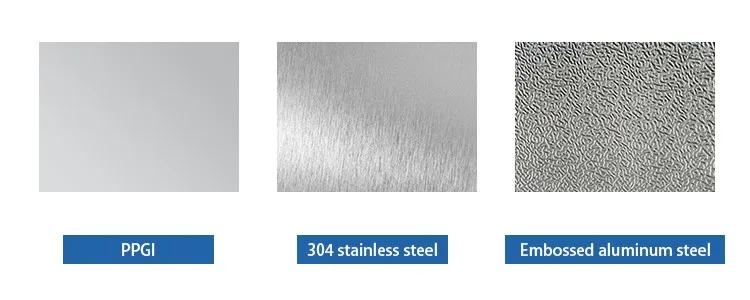

There are three choosed for surface material covered in polyurethane panel:
(1)Galvanized steel(PPGI)(0.3mm-0.8mm)
(2)304 Stainless steel(0.5-1.0mm)
(3)Embossed aluminum steel(0.6mm-3.0mm)
Surface material on both sides can be selected different steel. All panels can be customized.

Polyurethane panel features:

(1)Size: the standard width will be 960mm,the length can be customized ,but in order to suit the shipping container 20GP, 40GP or 40HC,so we suggest to set the max length as 2900mm,5900mm or 11800mm.

(2)Connection by cam locks. Every panel has tongue and groove dry joint, installed by hexagon wrench.

(3)We use more environmental protection material-F141b, fluoride-free.

(4)Heat insulation ,waterproof,competitive price,easy -installation.


(5) All panels and doors can meet fireproof rate B2.

Installation

Step 1:Floor panel

Step 2: Wall panel

Step 3: Ceiling panel

Each panel will be marked according to drawing and connected by cam locks. Every panel has tongue and groove dry joint,you just need to lock different panels together, then seal them with sealant.


You can watch this following video about how to install cold room.

Packing and Delivery

About package,panels are packed by PVC film and refrigeration equipment are packed by wooden case. All wooden cases are not need fumigation.

You can choose by sea, by air, or via DHL, UPS ,TNT,FEDEX,EMS etc.We have professional shipping companies like MSK,CSCL,CNC,COSCO,APL to support us on shipment. Our products will be transported to you safely and quickly. We'll choose the most suitable way and lowest delivery cost for you.

About Us

The cold room panel has different thickness, from 50 millimeters to 200 milimeters, using polyurethane materials for the inner and the surface panel can use prepainted galvanized steel sheet, stainless steel plate or embossed aluminum sheet. The cold room door can be manual or electronic, single door or double open door, and other types. Also, the level of our panel and door's flame retardant can reach B2 according to customers' needs.

Size:29.5m*21.4m*5m

Usage:Fruit and vegetable

Country: Uzbekistan

Size:4.5m*2.5m*2.8m

Usage:Blood storage

Country: America

Size:100.8m*31.68m*5.05m

Usage:Fish and other seafood

Country:Angola

Size:0.99m*1.5m*1.2m

Usage:Vaccine

Coutry:Germany

Size:50m*10m*3.5m

Usage: banana

Country: Ghana

Size:25m*15m*6m

Usage:Ice sculpture

Coutry: China

As a professional enterprise specializing in manufacture and marketing of refrigeration equipment, Changzhou Changxue has grown up as a success one in China in the market of refrigeration. We have set up a foreign trade department for servicing our clients from other countries;
We can certainly offer you:
1. Best quality & best price.
2. Satisfactory service.
3. Long-term cooperate relationship.
4. Door-to-door service under a paid partnership.
And we also accept:
1. Visit to our factory.
2. Airport picking-up.
3. Customized requirement.
4. Inspection from your side any time during the production process and before loading.

Contact Us

To Know more price and products details please send Inquiry.

Response Time < 24 Hours

www.coldroomtech.com

Whatsapp/Wechat: +86-18961475287
