30CBM small cold room for fruit and vegetable

FOB Reference Price:Get Latest Price
$500.00 - $1,500.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
Cold Storage
Report Suspicious Activity
Overview
Quick Details
Temperature:
-50 ~+50
Power(W):
price Specifications
Dimension(L*W*H):
Customized Size
Warranty:
One Year
After-sales Service Provided:
Online support
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Changxue
Voltage:
220V/380V
Weight:
price Dimension
Certification:
ISO9001:2008 BV
Product name:
30CBM small cold room for fruit and vegetable
Keyword:
Cold room
Usage:
Vegetable Keeping Fresh
Door type:
Hinged Door
Compressor:
Emerson Copeland 3HP
Evaporator:
DD22
Refrigerant:
R404A
Thickness of panel:
100mm
Size:
4*3*2.5m
Control system:
Defrosting Auto-controlled
Supply Ability
Supply Ability:
5 Set/Sets per Day
Packaging & Delivery
Packaging Details
fruit and vegetable cold store room price for sale in changzhou will be packed by PVC film+XPS reinforcement or Wooden packaging+XPS reinforcement
Port
Qingdao,Ningbo,Shanghai,Guangdong
Product Description

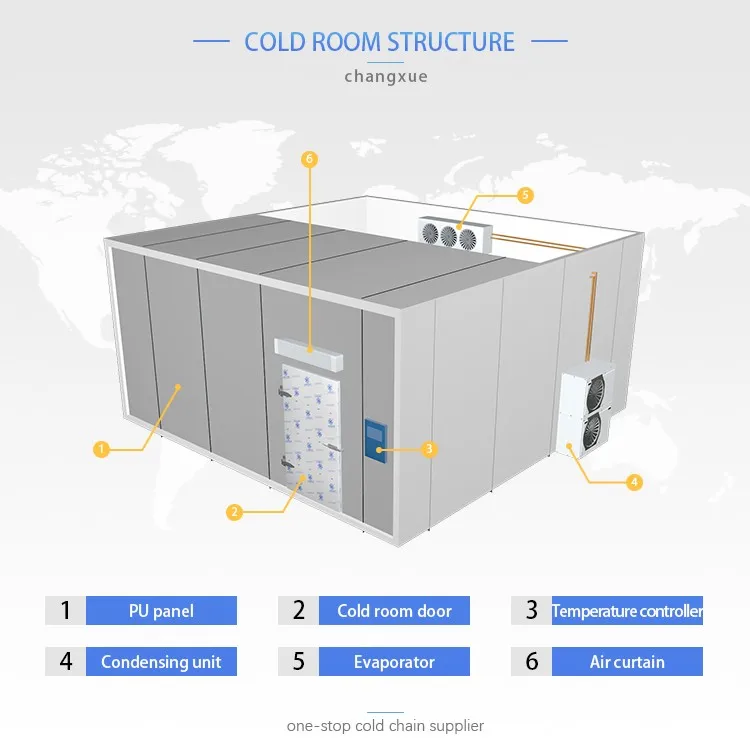

1.1 Cold room structure


Changxue cold room consists mainly of cold room panel, cold room door, condensing unit, evaporator, temperature controller, air curtain, copper pipe and other refrigeration fittings.

1.2 Cold room applications

Cold room is widely used in food industry, medical industry, and other related industry.
In food industry, cold room is usually used in food process factory, slaughterhouse, fruit and vegetable warehouse, supermarket, hotel, restaurant, etc.
In medical industry, cold room is usually used in hospital, pharmaceutical factory, blood center, gene center, etc.
Other related industry, such as chemical factory, laboratory, logistics center also use cold room.

Design principle

In cold room projects, the following factors should be fully considered:

1.What is the application of the cold room?
It will affect the temperature needed to reach, and the choice of thickness of panel and material covered on panel.The thickness about panels can be 50mm,75mm,100mm,120mm,150mm,180mm and 200mm. Surface material can be PPGI, 304 stainless steel and embossed aluminum steel.


2.What is the size of the cold room?
It will affect the choice of condensing unit.

3.Which country will the cold room located in? What is the ambient temperature in summer? What is the voltage?
It will affect how long will it take to produce condensing unit, as 380v is the common type, for 220v and 110V need to be customized.

Application for example
 Room Temperature
Fruit & Vegetable
-5 to 10 ℃
Chemical factory,medicine
0 to 5 ℃
Ice cream, ice storage room
-10 to -5 ℃
Frozen meat storage
-25 to -18 ℃
Fresh meat storage
-40 to -30 ℃
Solution and Catalog

Solution of 30CBM small cold room for fruit and vegetable

Brand name
30CBM small cold room for fruit and vegetable
Size
3*4*2.5m
Temperature
-5 degrees to 10 degrees
Usage
Fruit and vegetable
Door
Hinged door 0.8*1.8m
Panel thick
100mm
Compressor unit
America Emerson 3HP
Evaporator
DD22

Remark:
1.Panel thick, door size, compressor unit and evaporator are o
ptional.
2.8-10 tons fruit and vegetable can be stored in this cold room. If you have any requirements, please contact me any times.

Cold Room Catalog


Parmeter


Brand
Changxue or OEM / ODM
Size
Customized
Temperature
-50°C to 50 °C
Voltage
380V or Customized



Main parts
Polyurethane sandwich panel
Cold room door
Condensing unit--- Germany Bitzer, America Emerson, etc.
Air cooler---Gaoxiang, Yongda or customized
Temperature controller---Dixell,Schneider
Fittings
Valves, copper pipe, cable tie, insulating tape, insulation tube and glue
Certification
ISO9001, BV, SGS, TÜV

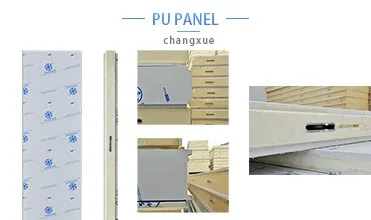

Cold room panel

We use fluoride-free material, it is more environment-friendly.All CHANGXUE cold room panels can reach fireproof level B2.

Polyurethane panel is foamed by high pressure with density of 38-42 kg/m3. So cold room has good thermal insulation.

Cold room door

We have different types of cold room door, such as hinged door, swing door, sliding door and other types of doors according to your requirement.

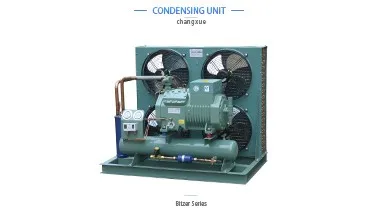

Condensing unit

We use the world famous brand like Germany Bitzer, America Emerson, etc.
The automatic high-precision digital controller is easy to operate with high efficiency.

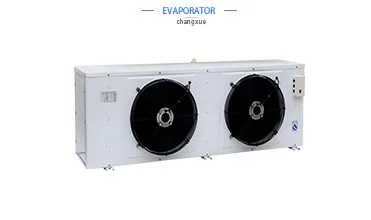

Evaporator

Model:DD,DJ,DL.DD series is for medium temperature; DJ series is for low temperature;DL series is for high temperature.
Low cost, high cost performance

Refrigeration fittings

(1)Temperature controller
Famous brand:Italy Dixell, French Schneider
(2)Valve Parts
Famous brand: Denmark Danfoss
(3)Copper pipe
Copper pipe size is decided by the type compressor and evaporator

Installation

Step 1:Floor panel

Step 2: Wall panel

Step 3: Ceiling panel

Each panel will be marked according to drawing and connected by cam locks. Every panel has tongue and groove dry joint,you just need to lock different panels together, then seal them with sealant.


You can watch this following video about how to install cold room.

Packing and Delivery

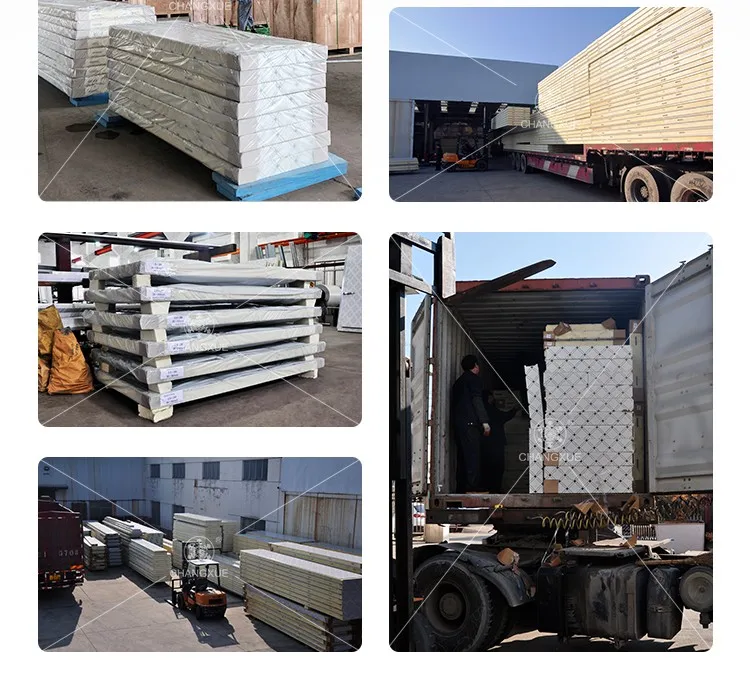

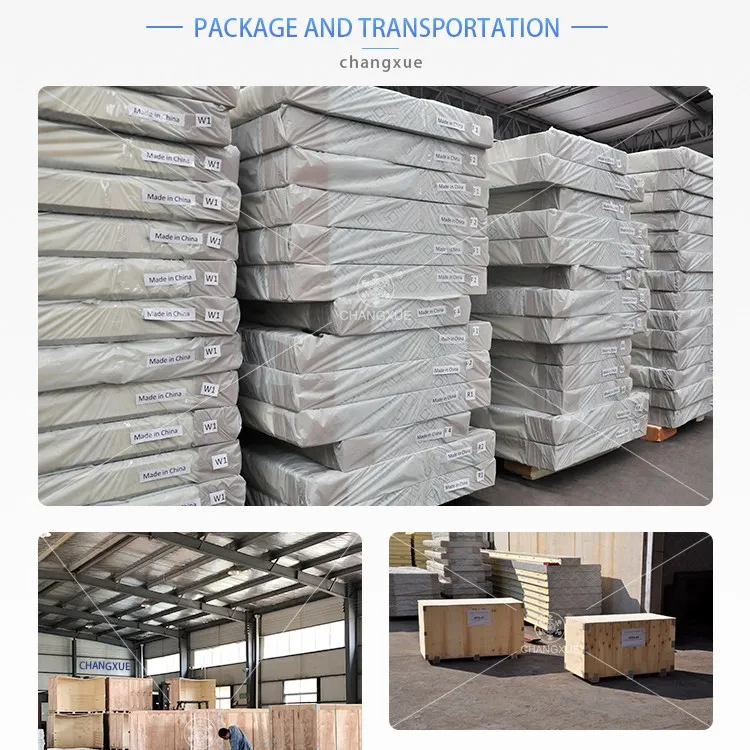

About package,panels are packed by PVC film and refrigeration equipment are packed by wooden case. All wooden cases are not need fumigation.

You can choose by sea, by air, or via DHL, UPS ,TNT,FEDEX,EMS etc.We have professional shipping companies like MSK,CSCL,CNC,COSCO,APL to support us on shipment. Our products will be transported to you safely and quickly. We'll choose the most suitable way and lowest delivery cost for you.

About Us

The cold room panel has different thickness, from 50 millimeters to 200 milimeters, using polyurethane materials for the inner and the surface panel can use prepainted galvanized steel sheet, stainless steel plate or embossed aluminum sheet. The cold room door can be manual or electronic, single door or double open door, and other types. Also, the level of our panel and door's flame retardant can reach B2 according to customers' needs.

Size:29.5m*21.4m*5m

Usage:Fruit and vegetable

Country: Uzbekistan

Size:4.5m*2.5m*2.8m

Usage:Blood storage

Country: America

Size:100.8m*31.68m*5.05m

Usage:Fish and other seafood

 Country:Angola

Size:0.99m*1.5m*1.2m

Usage:Vaccine

Coutry:Germany

Size:50m*10m*3.5m

Usage: banana

Country: Ghana

Size:25m*15m*6m

Usage:Ice sculpture

Coutry: China

As a professional enterprise specializing in manufacture and marketing of refrigeration equipment, Changzhou Changxue has grown up as a success one in China in the market of refrigeration. We have set up a foreign trade department for servicing our clients from other countries;
We can certainly offer you:
1. Best quality & best price.
2. Satisfactory service.
3. Long-term cooperate relationship.
4. Door-to-door service under a paid partnership.
And we also accept:
1. Visit to our factory.
2. Airport picking-up.
3. Customized requirement.
4. Inspection from your side any time during the production process and before loading.
